cutting uphill?
Posted: Fri Feb 13, 2015 12:56 pm
by Djphil1
So I have a strange thing going on with my laser. when i cut rectangles or squares it completes the cut but the right side is always higher than the left. Anyone esle experience something like this?
Thanks!
Phil
Re: cutting uphill?
Posted: Fri Feb 13, 2015 1:16 pm
by Tech_Marco
Pictures?
Not sure what you mean of "higher"
Slop?
Marco
Re: cutting uphill?
Posted: Fri Feb 13, 2015 1:44 pm
by Djphil1

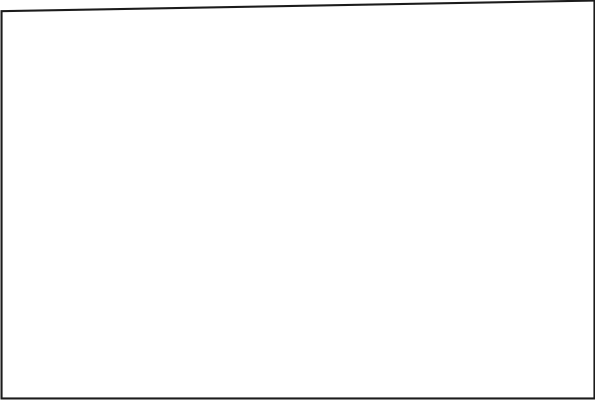

- square.bmp (233.87 KiB) Viewed 3396 times
looks like this
Re: cutting uphill?
Posted: Fri Feb 13, 2015 7:05 pm
by Tech_Marco
It looks like that your XY stage is not aligned well.
Use a ruler or any measurement tool to check it
Marco
Re: cutting uphill?
Posted: Sat Feb 14, 2015 6:07 am
by Djphil1
I just think its strange that it only does it at the top. I will check alignment. Also if it goes past half way on the y axis it doesnt return to its original position.
Re: cutting uphill?
Posted: Mon Feb 16, 2015 7:13 pm
by Tech_Marco
Just curious where is the home location; Top Left or Top Right?
If you ask me to guess, I think it is on Top Right, am I right?
Marco
Re: cutting uphill?
Posted: Fri Feb 27, 2015 9:40 am
by Djphil1
Its actually top left. The strange thing is it only does it on the one side. I will finally get a chance to look at this sunday. So I will realign everything. Let me know if you have any more suggestions. I was thinking maybe bad belts too.
Re: cutting uphill?
Posted: Fri Mar 06, 2015 11:37 am
by Tech_Marco
Check the axial coupling see if it got lose. It seems that the two "Y" axial are not in syn. One side seems running more steps than the other side
Also, check the Y pulley see if any damage
Marco
Re: cutting uphill?
Posted: Tue Mar 24, 2015 3:54 pm
by Djphil1
I found a place it was binding and slowing things down. Just need to get things recalibrated and I will know if your suggestions worked. Thanks for your help
