K40 mini Z table limit switch installation and mounting

Postby Tech_Marco » Mon Jun 09, 2014 10:56 am

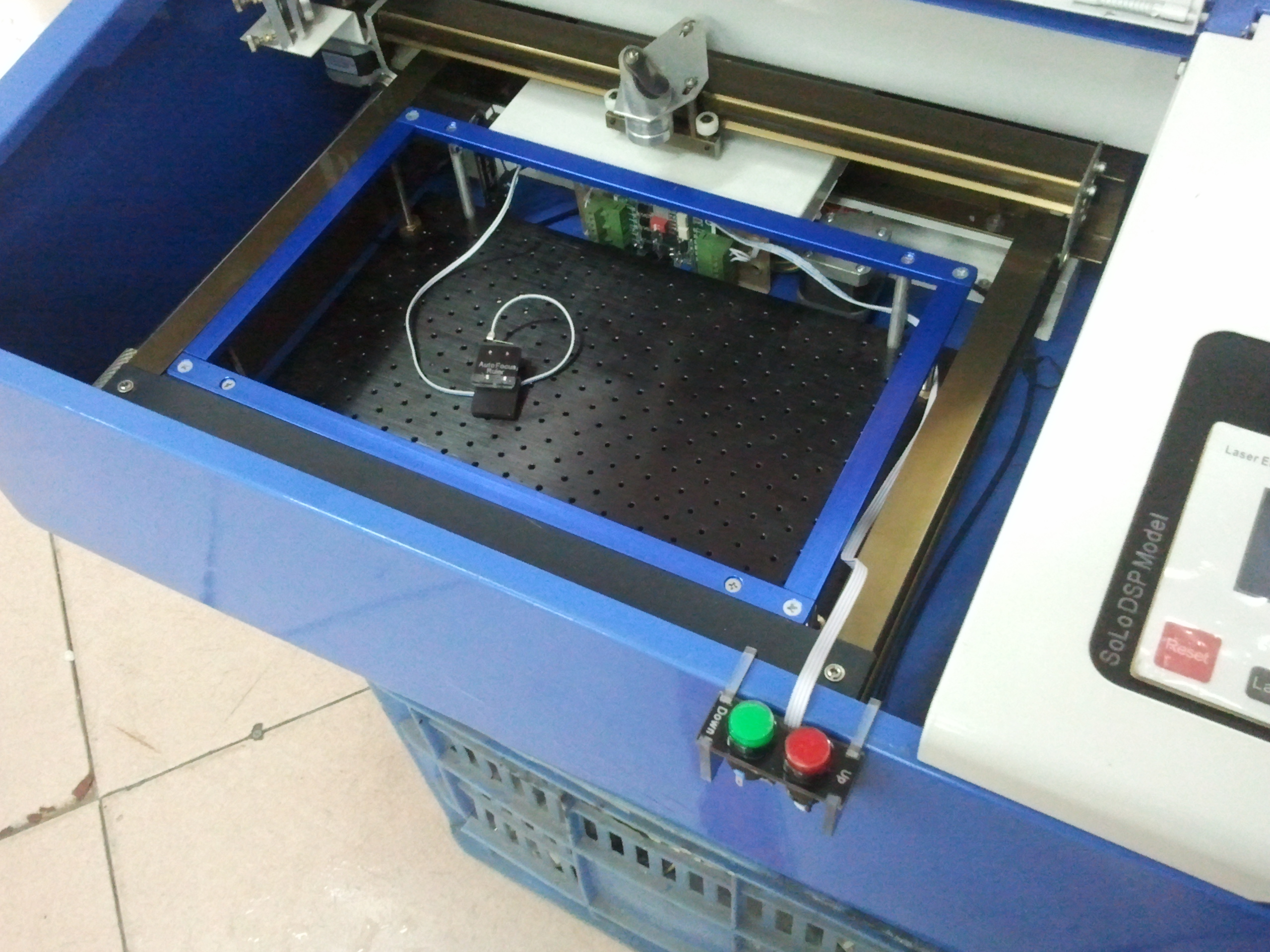

The file contains parts list and layout for doing DIY limit switches for the K40 mini Z table
You may use DSP or the EC04 controller board to control the bed up and down


Marco
Attachments
2013-04-17 17.40.31.jpg
2013-04-03 18.51.58.jpg
2013-04-03 18.41.28.jpg
K40_LimitSwitch_Parts.rar
(768.28 KiB) Downloaded 439 times

Tech_Marco
Posts: 4145
Joined: Mon Jun 15, 2009 2:00 pm

Re: K40 mini Z table limit switch installation and mounting

Postby Tech_Marco » Sat Mar 26, 2016 4:25 pm

Update: Uploaded the step by step built photos. Do not tight up the four lead screws because doing so, the Z table may got locked up and not moving.

Click to download: lightobject.info/download/manual/PoweZ-Table-Assembly-Steps.rar


Marco
