ECNC-SC04 single axis stepping motor controller/ tester

Postby Tech_Marco » Mon Feb 18, 2013 11:12 pm

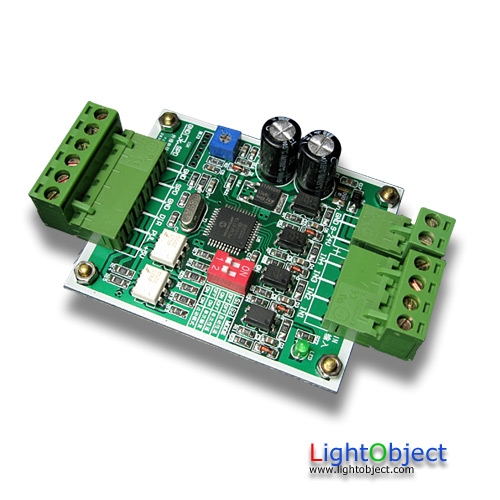

This is a stepping motor controller ideal for using as a motor tester. With four controlling modes, it can control a stepper motor in forward, backward, mutiple swing or single swing. Low cost but very handy. It is great to be used as a power 'Z' table controller. By the way, you can use this board for different size steppers by using proper motor driver (not included).
Attachments
ECNC-SC04.pdf
(396.85 KiB) Downloaded 692 times
